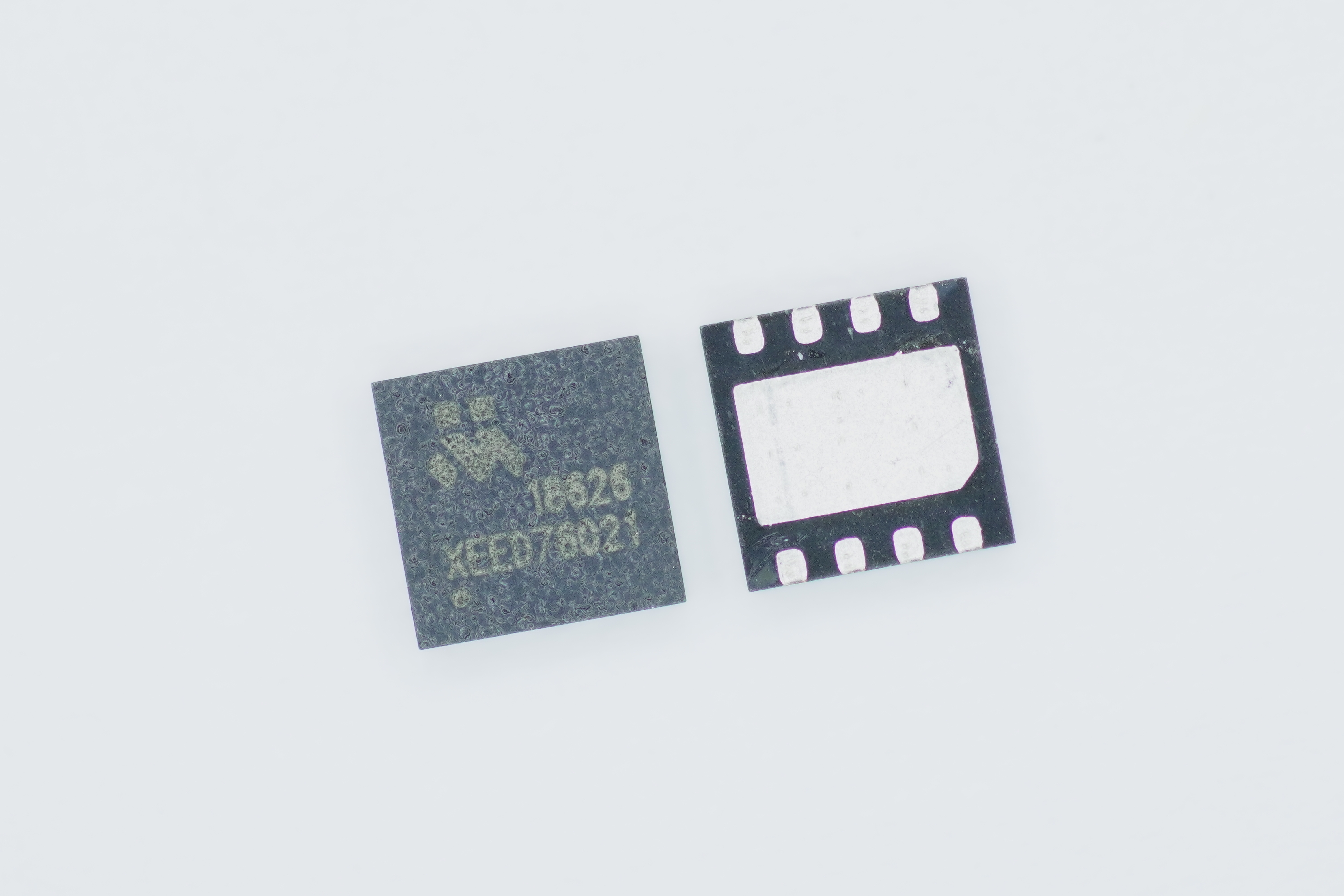

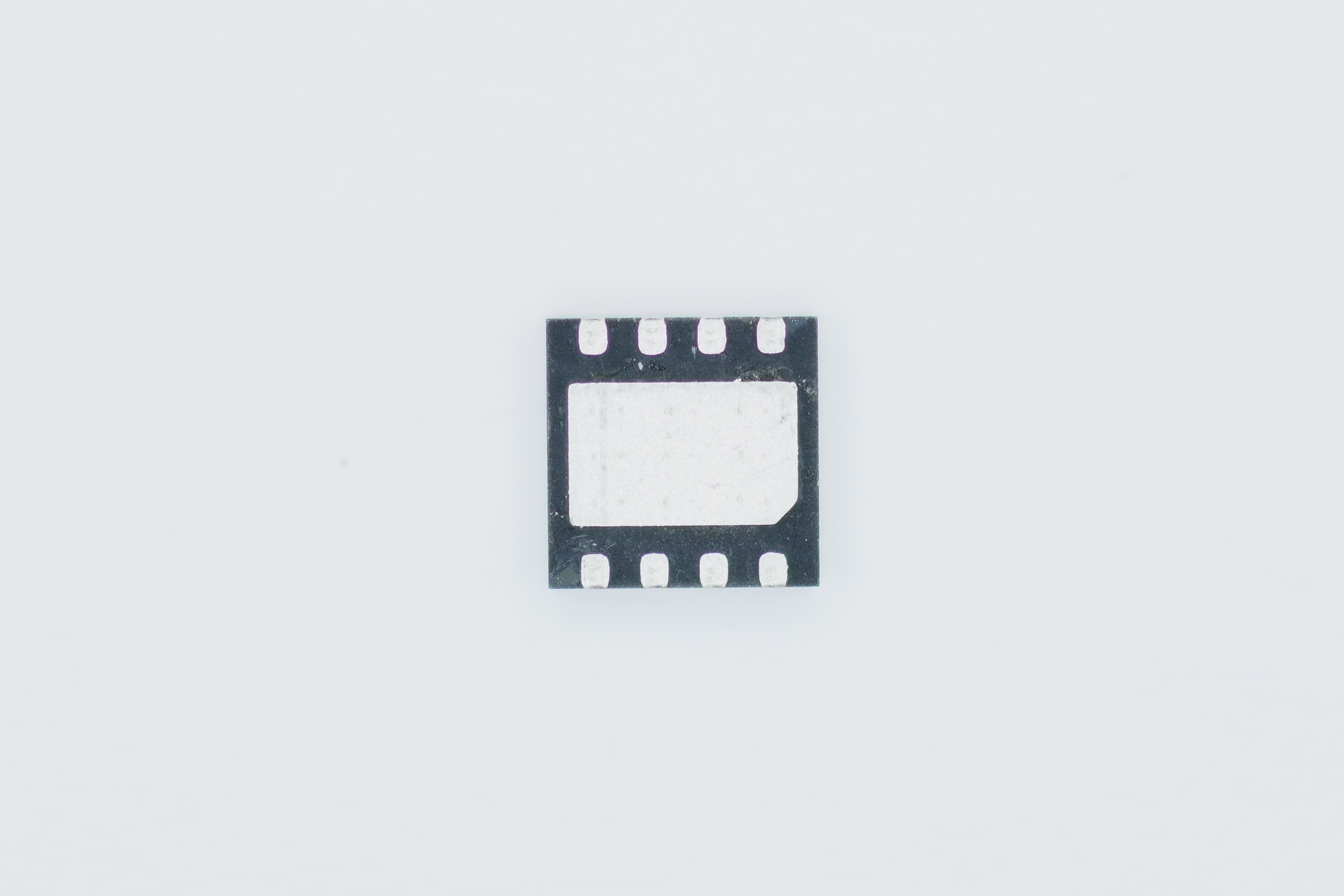

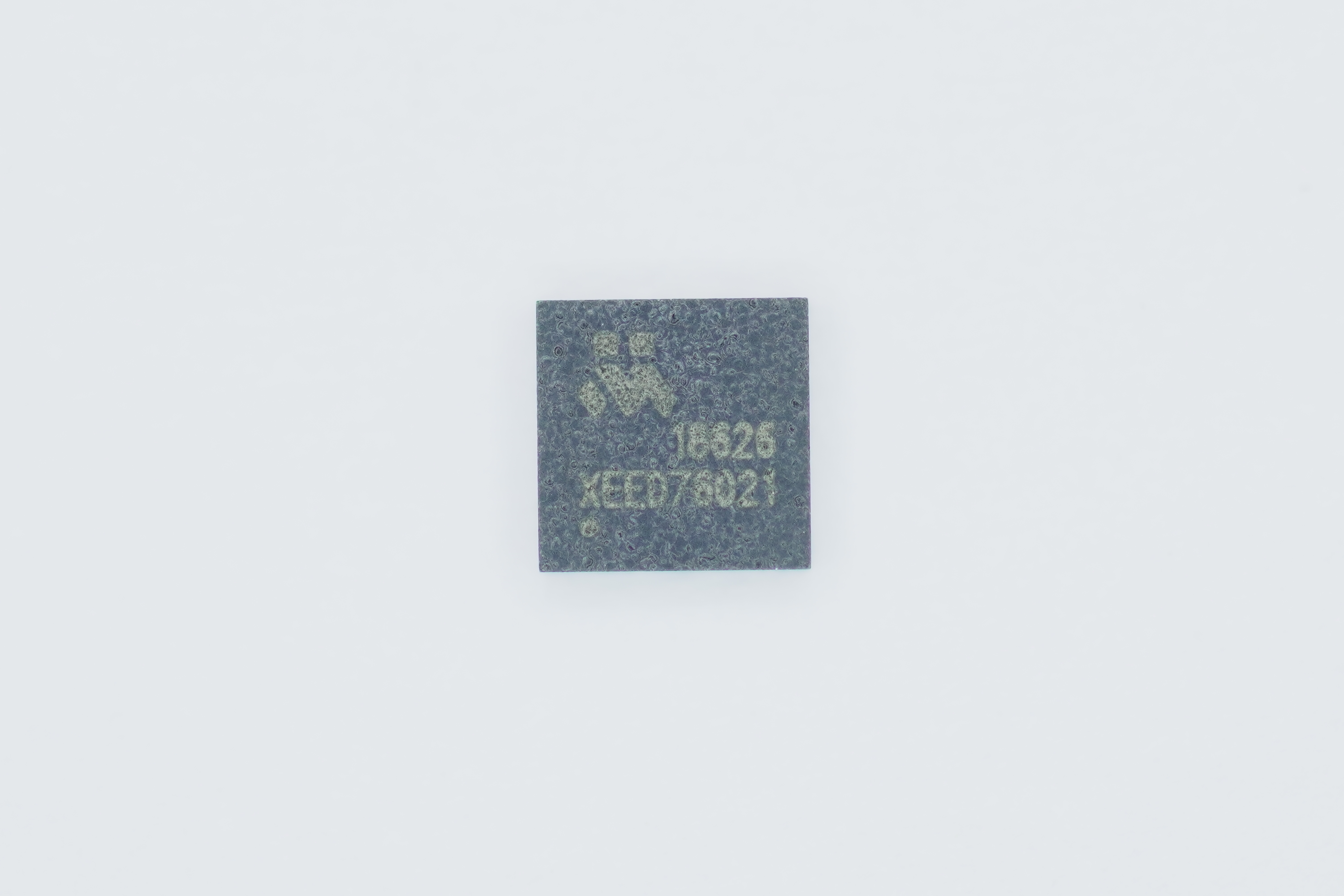

5-A Peak, High Frequency, Dual Low-Side Driver

数据手册

4.5V to 26V VDD Operating Range, 28V ABS MAX
Input Pins Can Tolerate -10V to +26V, and are Independent of Supply Voltage Range
Operating Switching Frequency up to 1MHz
5-A Source and Sink Output Peak Currents
Less than 10ns Rise and Fall Time with 2.2nF Load
Fast Propagation Delay (11ns Typical)
Excellent Propagation Delay Matching (1ns Typical)
TTL and CMOS Compatible Inputs
Symmetrical Undervoltage Lockout for Channel A and Channel B
Industry-standard-compatible Pinout
Specified from -40°C to 140°C
